Mini Car GPS Tracker with Voice Recorder

Car Tracker Mini GPS Car Tracker GPS Locator Tracker GPS Smart Magnetic Car Tracker Locator Device Voice Recorder

Attention: this is 2G GPS tracker

General Information:
Material: ABS
Antenna Type: GSM/GPRS
Communication Frequency: 850/900/1800/1900Mhz
Charging Input: AC 110-220V 50/60HZ
Charging Output: DC 5V 500mA
Working Voltage: DC 3.4-4.2V
Standby Current: About 2.5mA
GPS positioning accuracy: about 100m
Battery: 3.7V 400mA li-ion battery
Standby Time: 12 days
Working Time: 4-6 days
Color: Black
Size: 35*20*14mm

Features:
❤ Small size and light weight, easy for carry.
❤Black shell, easy to hide, perfect for tracking vehicles, teens, spouses, elderly persons or assets. With two powerful magnets inside, easy to attach to vehicle firmly, no extra installation need.
❤All you need is a working SIM card (NOT included!) to insert into the device, then you can track and map (with Google Maps) in real-time over the Internet.
❤Dial SIM card number, then you can hear voice around this tracker, with no light and no noise, you can monitoring and spy what’s going on around the tracker silently and secretly.
❤Voice Recording Function: Send text message 555 to SIM card number, it will reply a message “Snd” and start recording, SIM card and TF card are not included.

FAQ

Q.The host cannot be connected?

A:You must insert the SIM phone card and turn it on to enable the phone signal, so you only need to turn the machine off and on again. Also, your mobile phone card is not in the service area and there is no signal.

Q.TF memory card can not be stored?

A:First check if the TF memory card is wrong. If there is no problem with the TF card, you can format the TF memory card and try again.

Q.can’t charge?

A:To charge, you need to insert a GSM card, if you can’t charge it.

Q:Does it work indoor?

A:As long as there is network covered, it trackable.

Q:How long it last when fully charged?

A:Usually, it works for 3-7 days.

Q.What is the master phone?

A:You need to use it to monitor the burglar alarm phone.

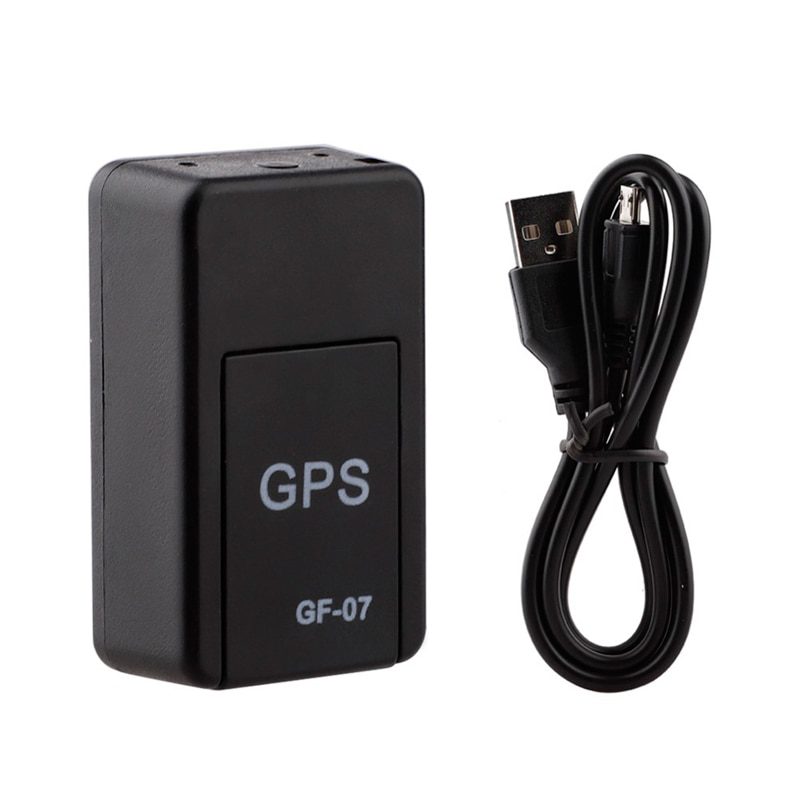

Packing including:

(1) * Mini tracker
(1) * USB cable
(1) * User manual

Instructions:

1. Preparation: a SIM phone card and mini memory card,

2. Power on: Open the card cover and insert the SIM card in the direction indicated. When the mini memory card is inserted, the product will automatically turn on the red light and flash off 4 times, and enter the normal standby state after 30 seconds. [Note if you do not read the memory card and re-plug it]

3. Indicator: The power-on indicator is always on 4 times, and the low-level indicator is flashing.

4, bind the master control number; use the mobile phone to edit the text message 000 to send to the alarm locator number, then the local machine responds to the mobile phone a text message; Set; bind + master control number

5. Separate recording; use the mobile phone to edit the SMS 555 and send it to the alarm locator number. Later, the local machine responds to the mobile phone with a text message; [Snd; recording has started]

6. Voice control callback; use mobile phone to edit SMS 666 to send to the alarm locator number, then the machine responds to a mobile phone text message; [DT; voice monitoring has been successfully set, alarm call back]. When the sound around the alarm locator is greater than 40 decibels, the alarm locator will automatically call the previously set mobile number.

7.GPRS positioning query: use the mobile phone to edit the SMS 777 and send it to the alarm locator number. Later, the local machine responds to the phone with a Chinese location and the Google Maps link. After the phone opens this link, the location map and text address description will appear. The location is more accurate.

8. Sound inquiry around the product: directly dial the number of the card in the alarm locator. After a few seconds, the sound around the alarm locator can be heard (the alarm locator itself will not emit any sound and light in the query)

9. Locating the track query; use the mobile phone to edit the short message 102 and send it to the alarm locator number. Afterwards, the machine replies to a mobile phone [account, password], and logs into the website http; // gpsui.net

10. Positioning time tracking; can be operated on the computer platform.

11. Delete the contents of the memory card; use the mobile phone to edit the SMS 445 and send it to the alarm locator number. Afterwards, the local machine responds to the mobile phone [TF, the cleaning is successful, the current capacity is available]

12. Host status; use mobile phone to edit SMS 888 and send it to the alarm locator number, then the machine will reply to the mobile phone with a text message; [All functions of the host open or close the battery capacity binding number, signal strength, boot frequency, GPRS TF card Capacity, etc.].

13. Restart the host; use the mobile phone to edit the SMS 999 and send it to the alarm locator number, and wait for 1 minute to recover successfully.

14. Close, the information has the display

Precautions:

When the alarm positioner is low in power (the power is below 5%), please charge it in time. If the battery is in a deficient state for a long time, it will inevitably cause deep discharge of the battery, affecting the battery performance and life. In severe cases, the battery will not charge. Electric or scrapped, if the alarm positioner is not in use, please charge the battery to 60%—80%, disconnect the power supply of the positioner, store it, do not use it for a long time (three months), please carry out the positioner regularly. Recharge the battery to protect the battery. For your better use of this machine, please read it carefully and follow the above, thank you.
