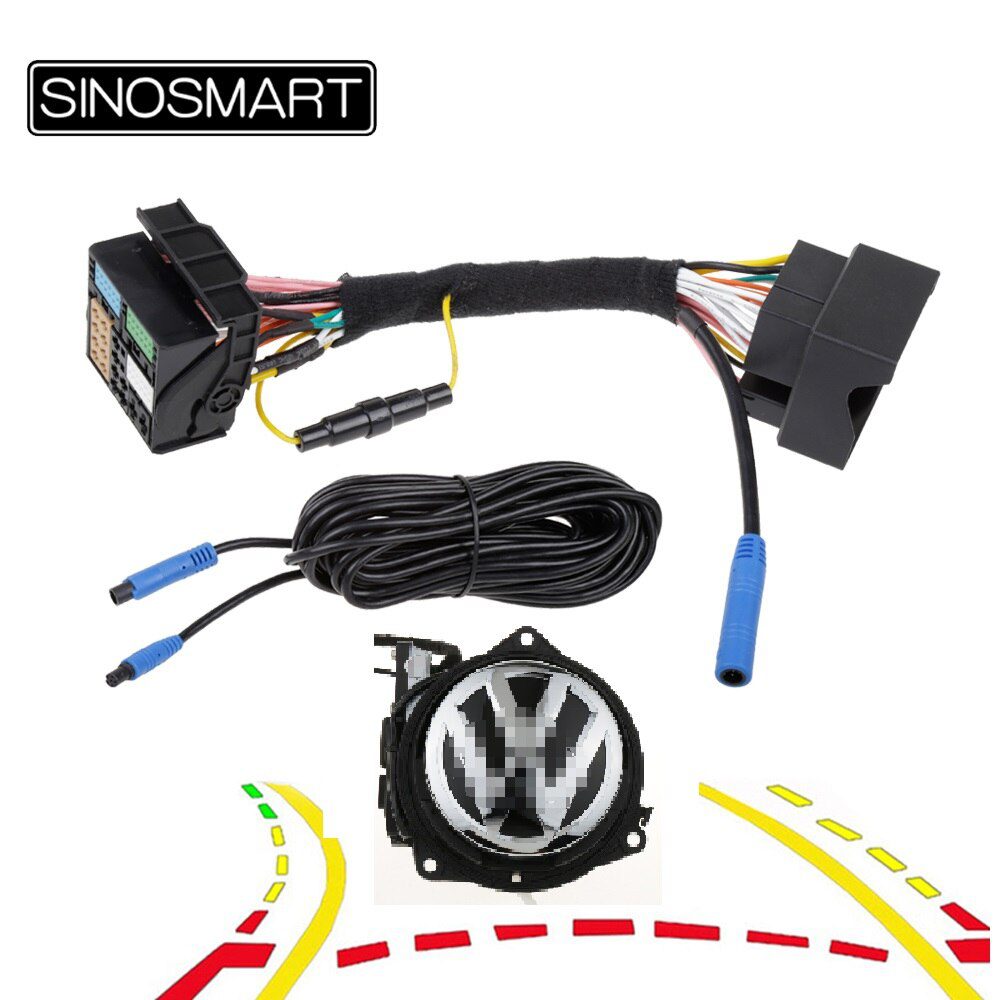

CanBus Reversing Dynamic Trajectory Parking Camera

CanBus Reversing Dynamic Trajectory Parking Camera with Wide Angle. Buy Innovative Car Electronics & Gadgets at Mojito Fashion.

The display language is following your monitor only. For example, your car is Chinese car, it is Chinese.
if your car is Russian car, it is Russian too.

Please be noted.

It can’t work with Audi A3 2020/2021 and VW Golf 8 2020/2021, even they are MQB Platform. They have totally different design.

It works for some of 2015 models, and it may need some code jobs too.

It works for 2015+ A3 8V in Europe, but it doesn’t work for 2015 in others area.

It can’t work well with A5 & A7. It will not work when you first put R/reversing gear, it needs twice R/reversing gear operation, then it will display the reversing image well.

We did not test on the car if it is before 2015.

It can’t work with Touran 2016+. It can’t work with some A3 2015, which was feedback from customers. It can’t work with A6L, A7, A8 or Q8, which is based on New MLB Platform.

This camera work with PQ or MQB Platform only.

If your car is top/luxury version, such as it is with original Navigation etc., it may not fit your car.

On the contrary, if your car is the lowest/primary version, such as no any original/OEM parking sensor etc., it may not fit too.

For Skoda Octavia, its rear trunk switch is similar like the camera A, but its size is 92mm by 35mm, the Camera A can’t fit, please be noted.

Product description

This is a high technology product for Volkswagen, Skoda and Audi system, which is based on MQB Platform (new model) or PQ Platform (old model) from 2016.

It will read the command from CANBUS system of Car Computer and control the camera on/off and parking line moving.

The camera works with our harness only. It can’t work separately. It means that it will not work with the CANBUS command only.

It supports OEM harness and OEM monitor ONLY, plug and play! If the monitor is NOT original monitor, it can’t work well.

It built-in the delay and it works with CANBUS system only.

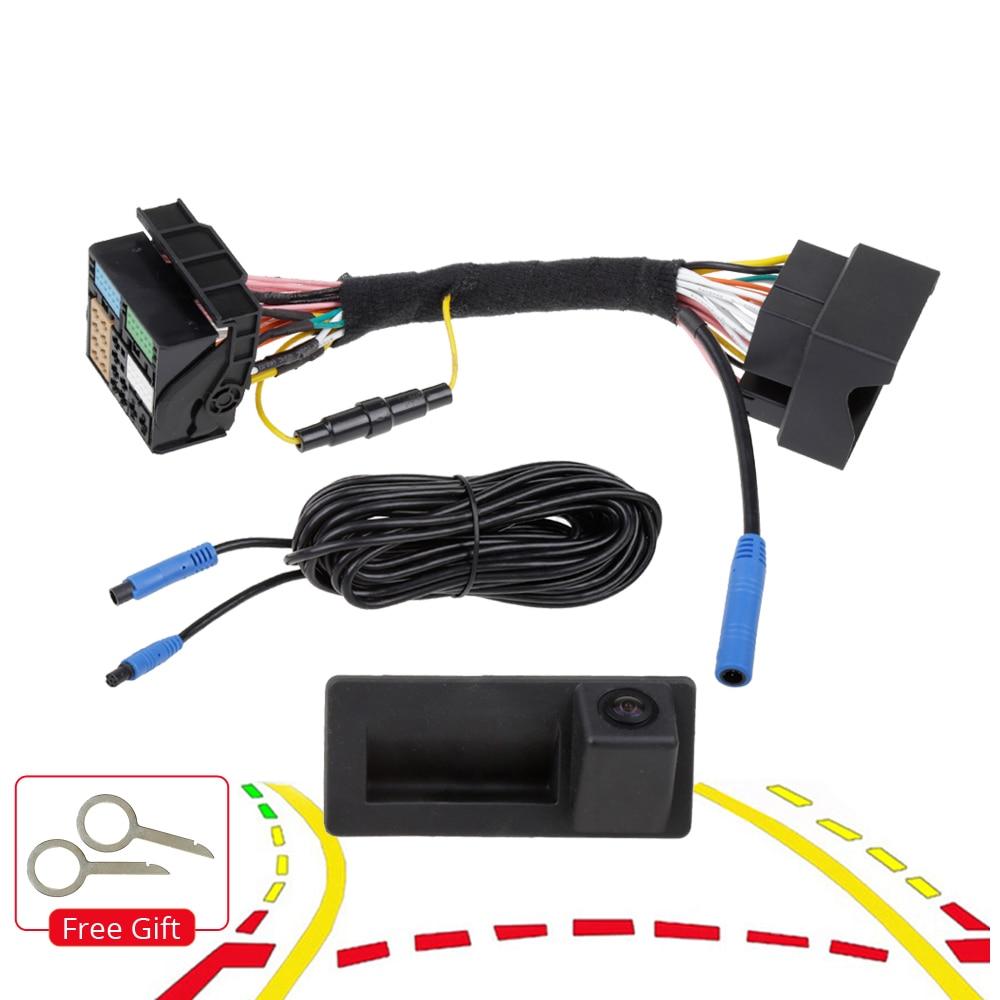

There are 5 kinds of trunk handle cameras and 1 kind of universal cameras for you.

The image quality matches the original monitor only. And the lens of the camera is with fish eyes as default with large view angles. Please check the product video carefully.

There are several special cameras for different models, please check carefully.

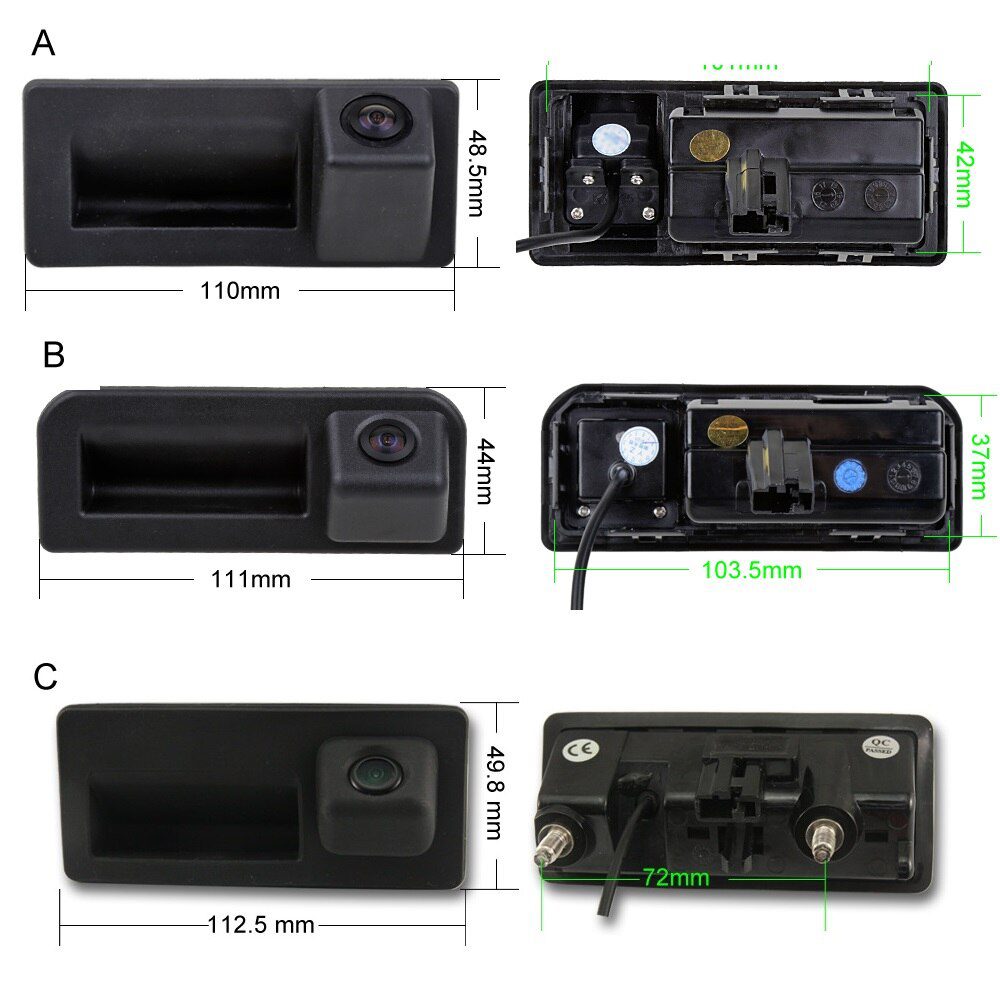

####Camera A is for following cars

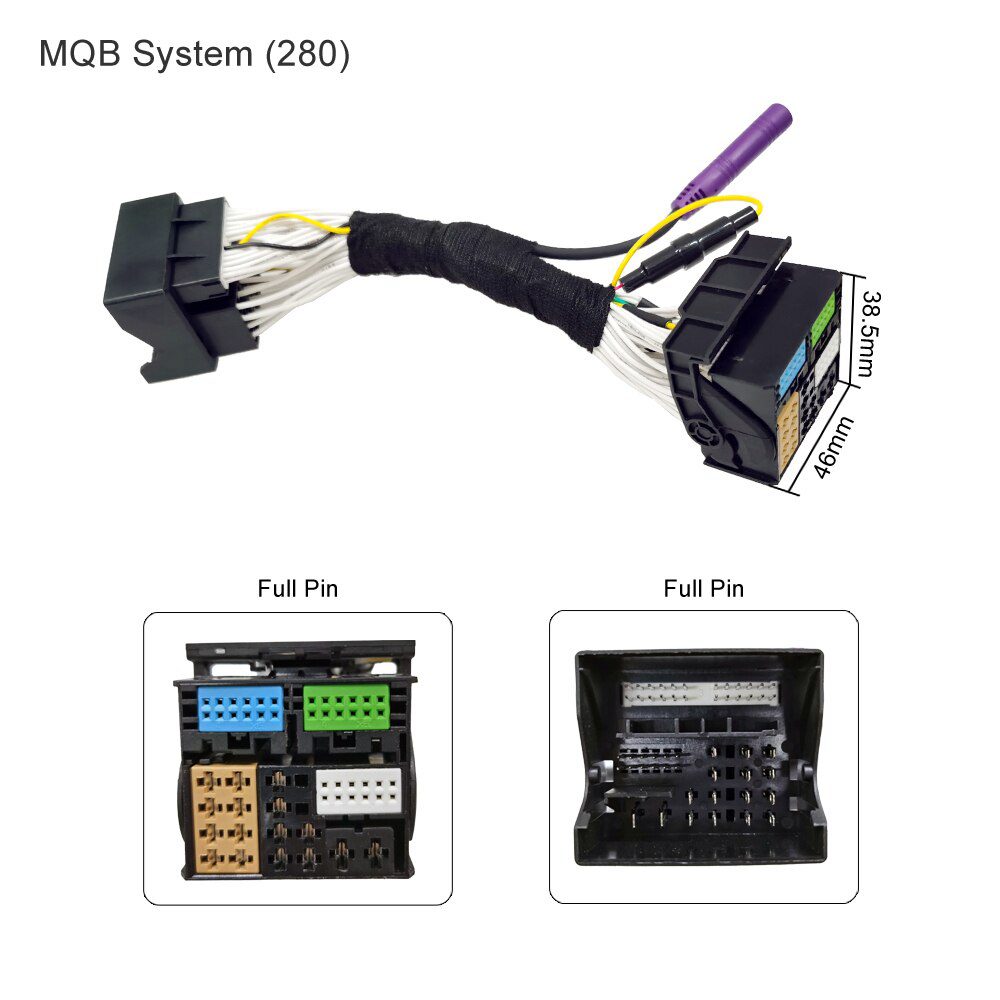

280 Monitor MQB system

Skoda superb 2017-2018, Octavia, Octavia Wagen etc.

Lavida PLUS, Tiguan L 2017, Teramont 2017, C-TREK 2017, Touran L 2016-2017 etc.

AUDI A4L 2017-2018, A3 2019 etc.

####Camera B is for following cars

280 Monitor MQB system:

Bora, TAYRON, Sagitar, Tharu, T-CLRSS, Jetta VS5 etc.

Q5L 2019, Q2L, Q3, A5 etc.

####Camera C is for following cars

Audi A3 8V 2015+

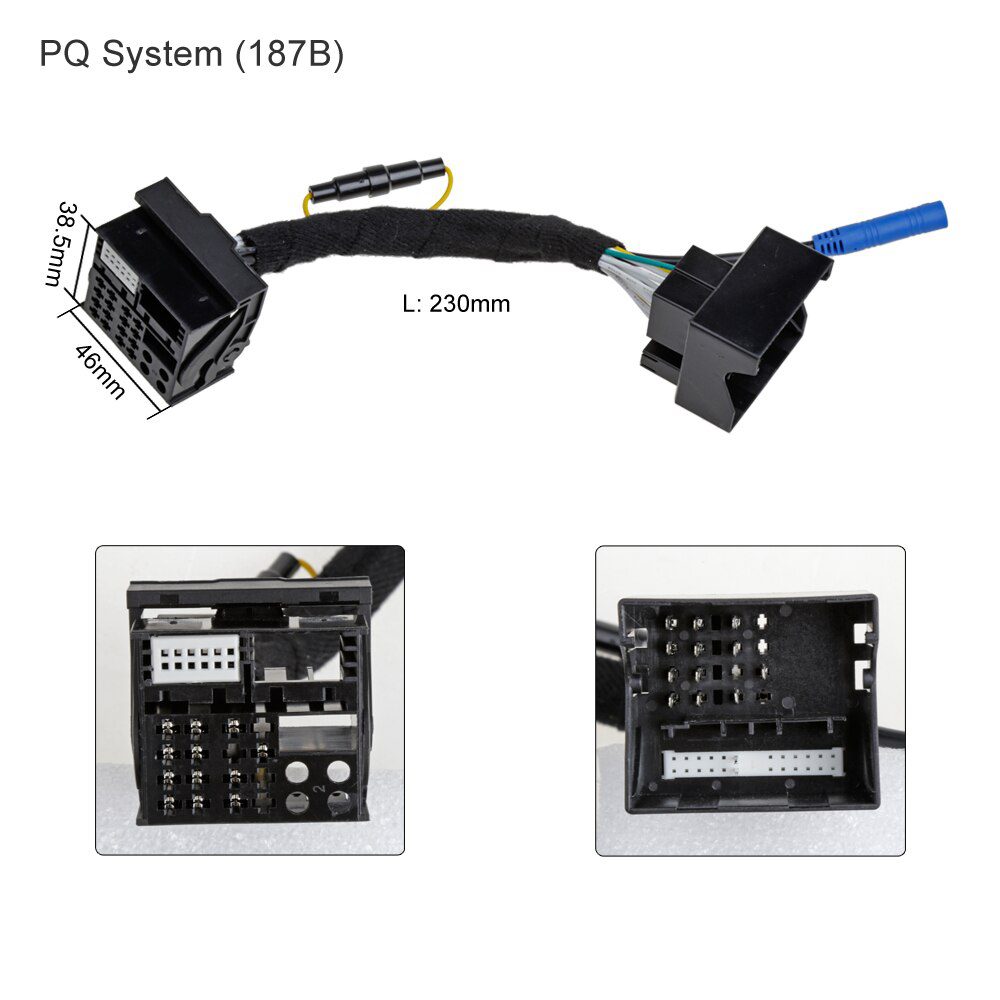

187B Monitor PQ system

Old Sagitar, Old Passat etc.

Q7 2017 2019 etc.

####Camera E is for following cars
Some of Skoda in Europe 2017+

####Camera F is for following cars (Original Car Water Spray Function), its size is same as camera B

Audi
Q2 2017 2018
Q3 2019

Skoda
Kodiaq 2017 2018
Karoq 2018

Some of Volkswagen 2019+

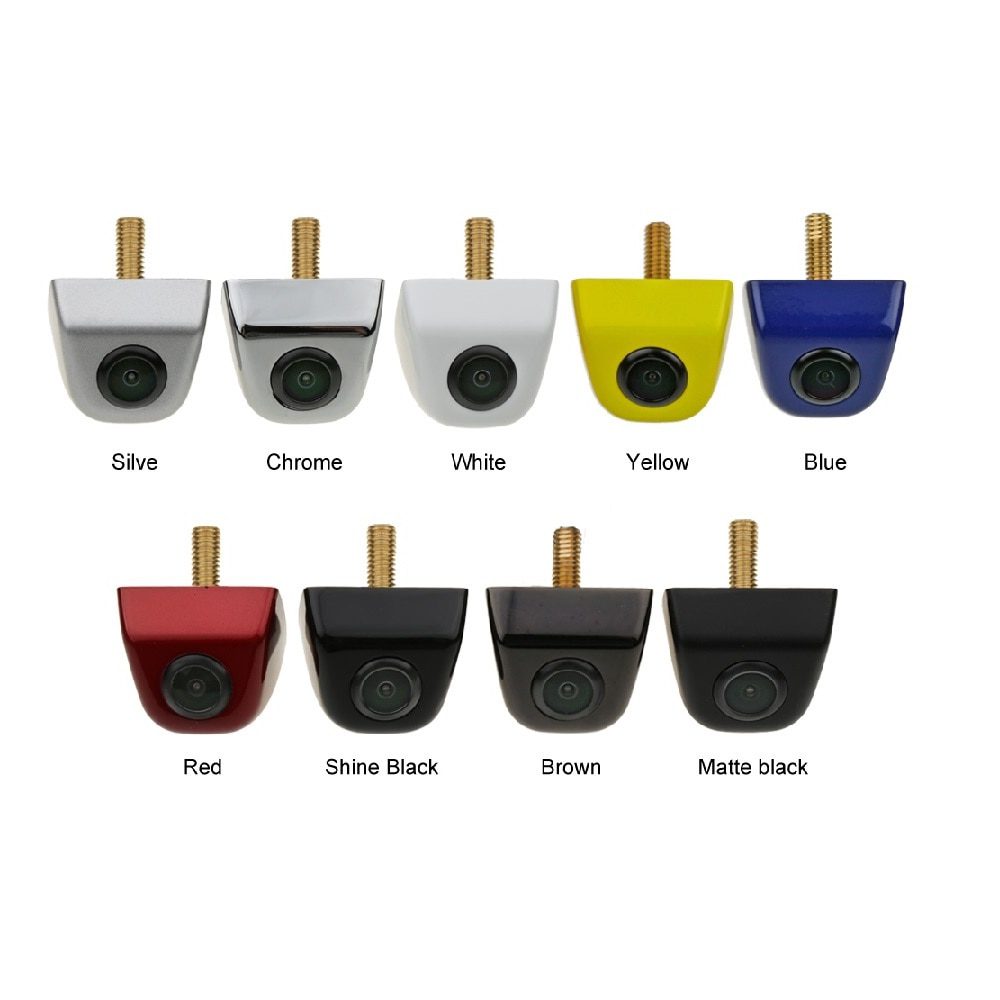

Camera D is universal camera

If you don’t want change your original trunk hand switch, there are 9 colors universal hot sell camera for you, please tell us which you need.

The default is Shine Black.

Please identify what kinds of system you need? MQB? PQ?

If you don’t know how to choose the correct model. Please send these following photos for us. Let us support you.

The following photos are from the successful customer.

If your car is same as theirs, please feel free to pay.

If your car is same as following photos, it will be easier to know what you need.

Our camera system can’t fit following car
