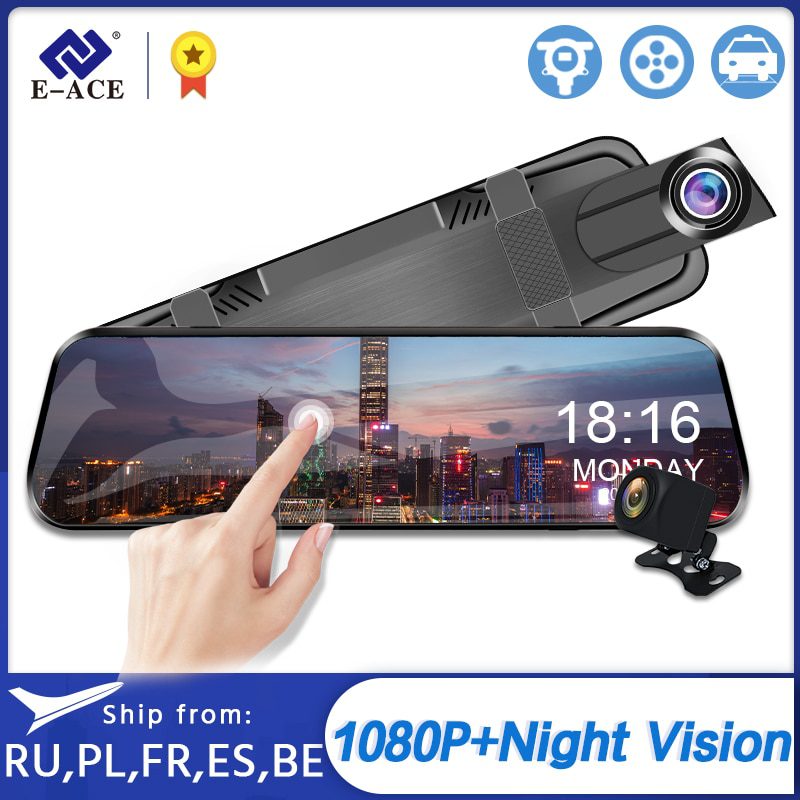

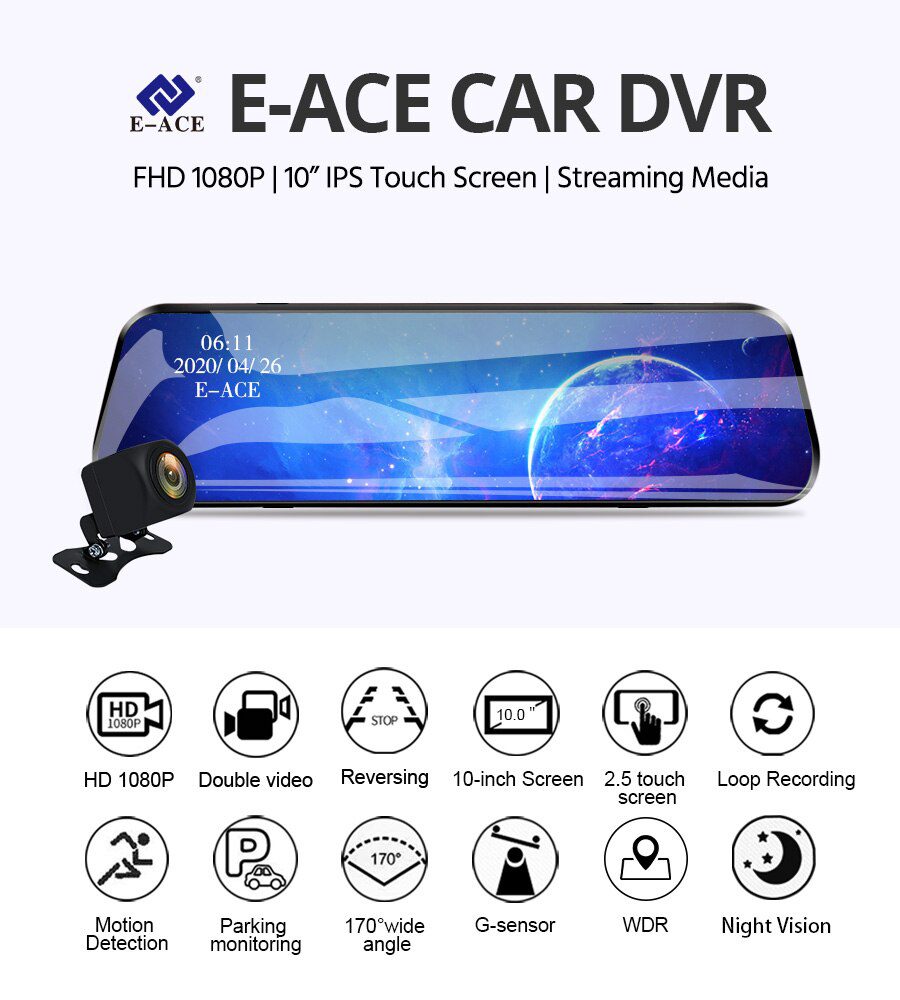

E-ACE Car Dvr Camera 10 Inch Streaming RearView Mirror Dash Cam FHD 1080P Auto Registrar Video Recorder Support Rear View Camera
|
Features And Specifications
|
Installation Type
|
Rearview Mirror, suitable for all vehicles with mirror
|
|

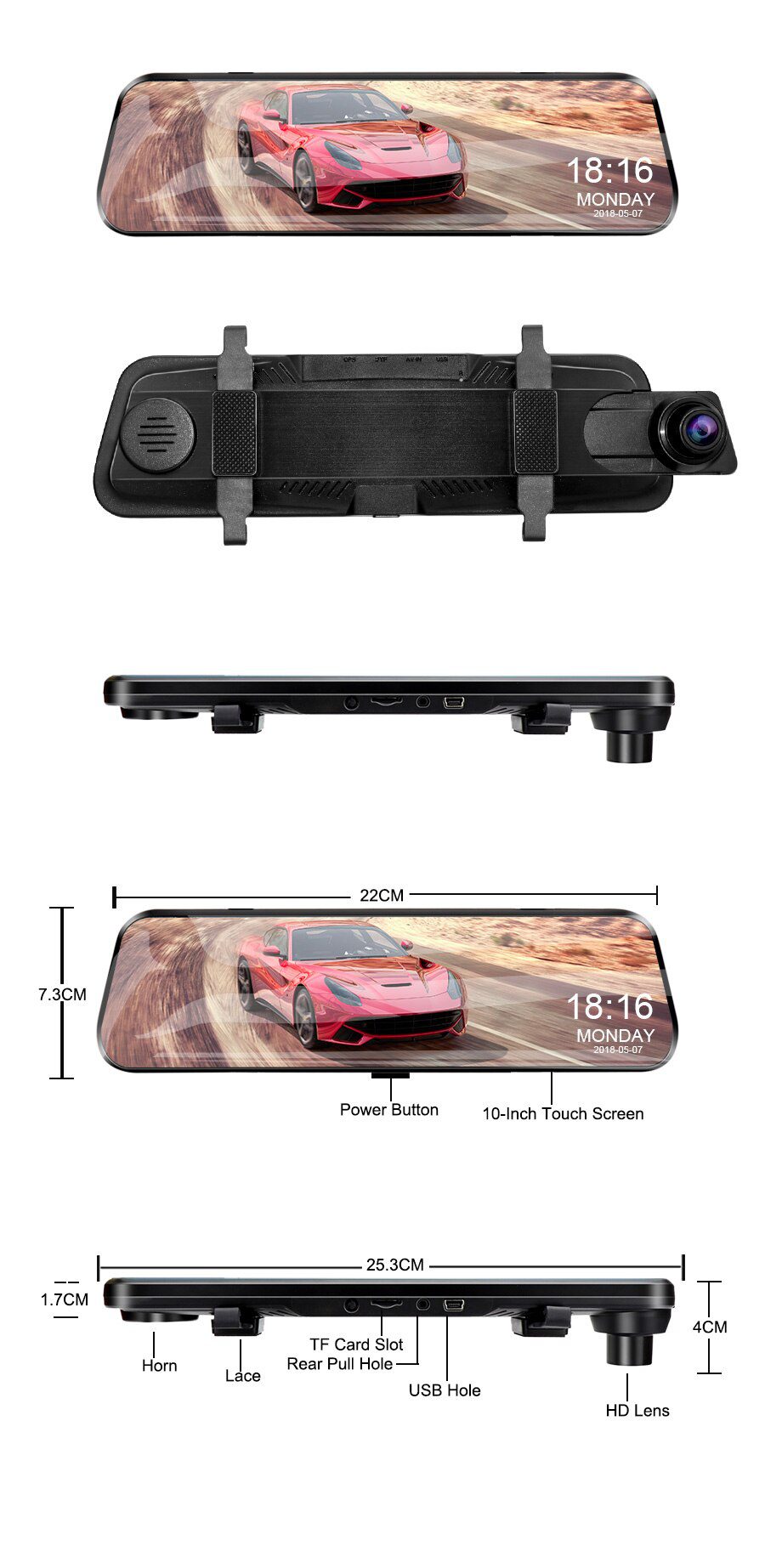

Screen(Display) Size
|
10.0 Inch Touch IPS Screen
|
|
|
Chipset(Processor/CPU)
|
JIELI
|
|
|
Camera Sensor
|
Front 2MP + Rear 1MP
|
|
|
Camera Lens
|
Front + Rear; 6 Glass + 4 Glass; 170 Degree Angle + 140 Degree Angle; F2.0 Aperture + F2.0 Aperture
|
|
|
Video Resolution
|
Front: 1920*1080P@30FPS; Rear: 1280*720P@25FPS
|
|
|
Photo Resolution
|
12M
|
|
|
Video Code
|
MJPG
|
|
|
Battery
|
Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
|
|
|
OSD Languages
|
English, Russian, Chinses, Japanese, Korean,etc….. (If you want other languages,tell us,we will help you add it)
|
|
|
Basic Features
|
G-Sensor, Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
|
|
|
Memory Card
|
Micro SD Card, class 10 and 16GB to 64GB (Not included)
|
|
|
Rear Camera Upgrade
|
Support max 10 meters cable Rear Camera
|
|
|
Add Features
|
Night Vision
|
|
|
More Features
|
Coming soon…..
|
|
|

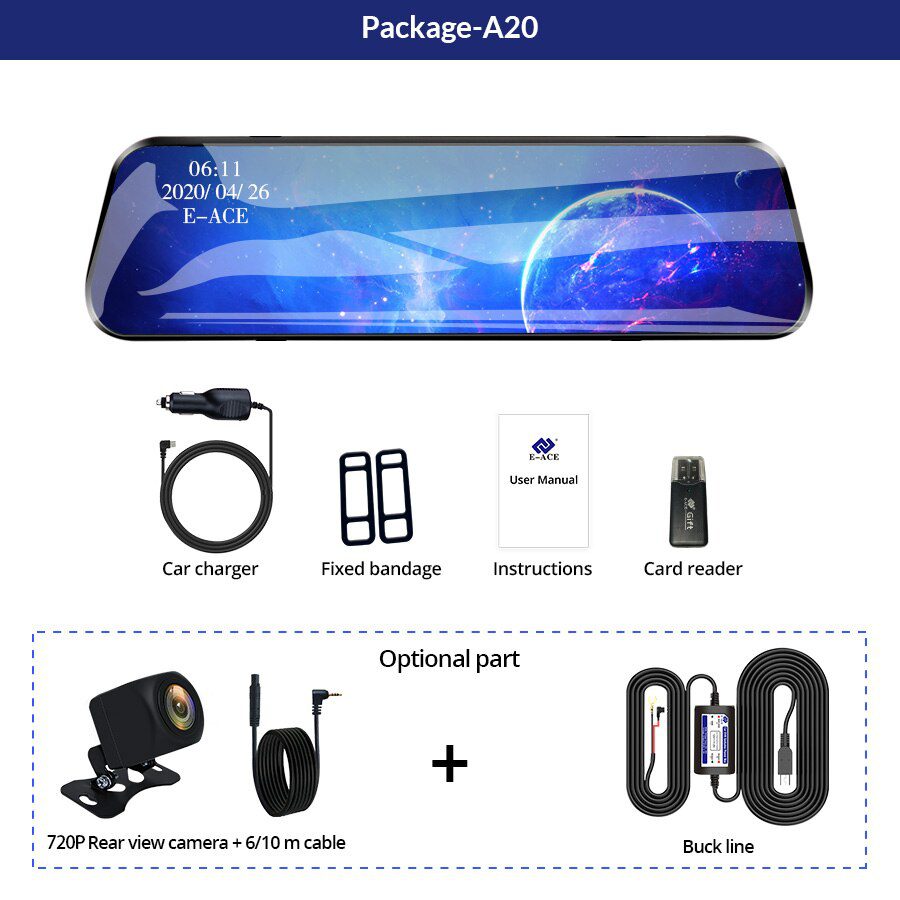

Packing List
|
Basic:
1 x Packaging box
1 x DVR 1 x Power charger 1 x User manual |
1 x 720P Night Vision Rearview Camera With 6/10 Meters Cable(Optional)
|
|
1 x Buck Line For 24H Parking Monitoring(Optional)
|
||
|
1 x Real Class 10 High Speed TF Card(Optional)
|
||
|
Adding…
|
||
|
Adding…
|
||
|
Pay Attention
|
About 24h Monitoring
|
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
|
| About Video | Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally, if you can’t make sure you have good TF Card,please buy our Original TF Card together. |

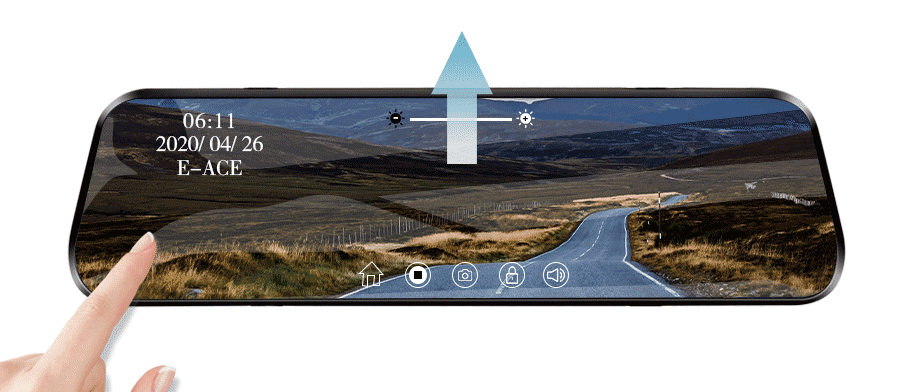

2 Touch Buttons To Adjust The Field Of View

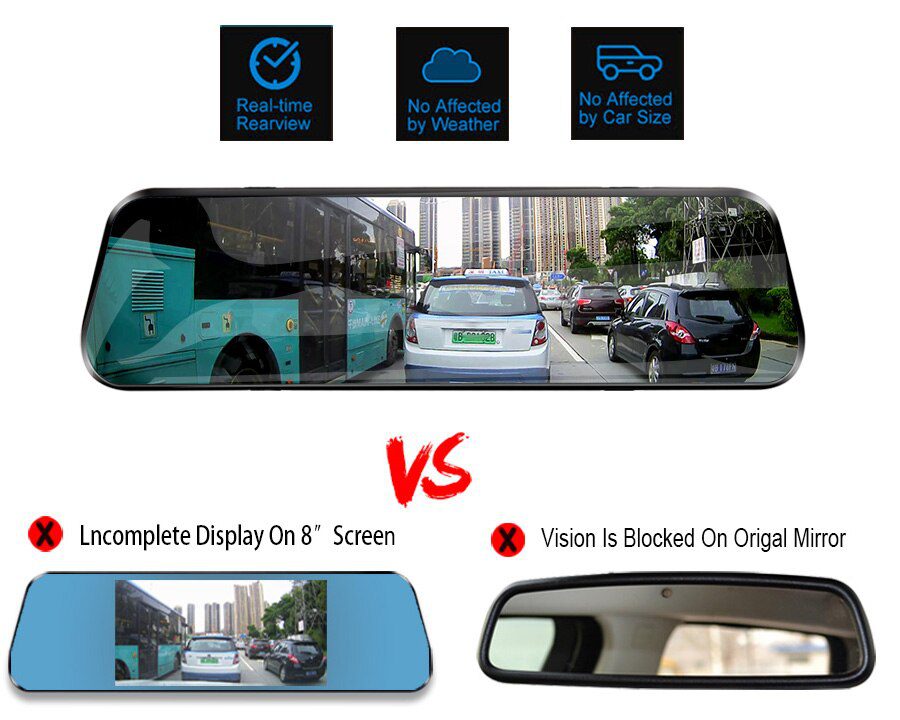

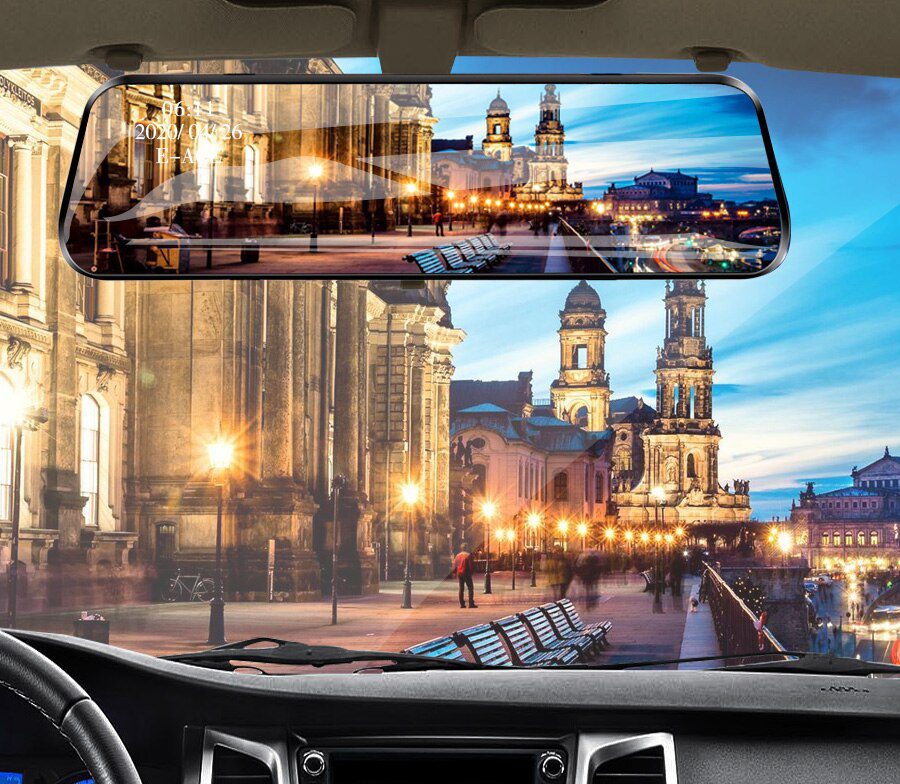

Streaming Media DVR Mirror
Streaming media rearview mirror use full screen instead of original reaview mirror. Display rear image of vehicle on screen in real time through camera. It is not affected by obstacles or natural weather.

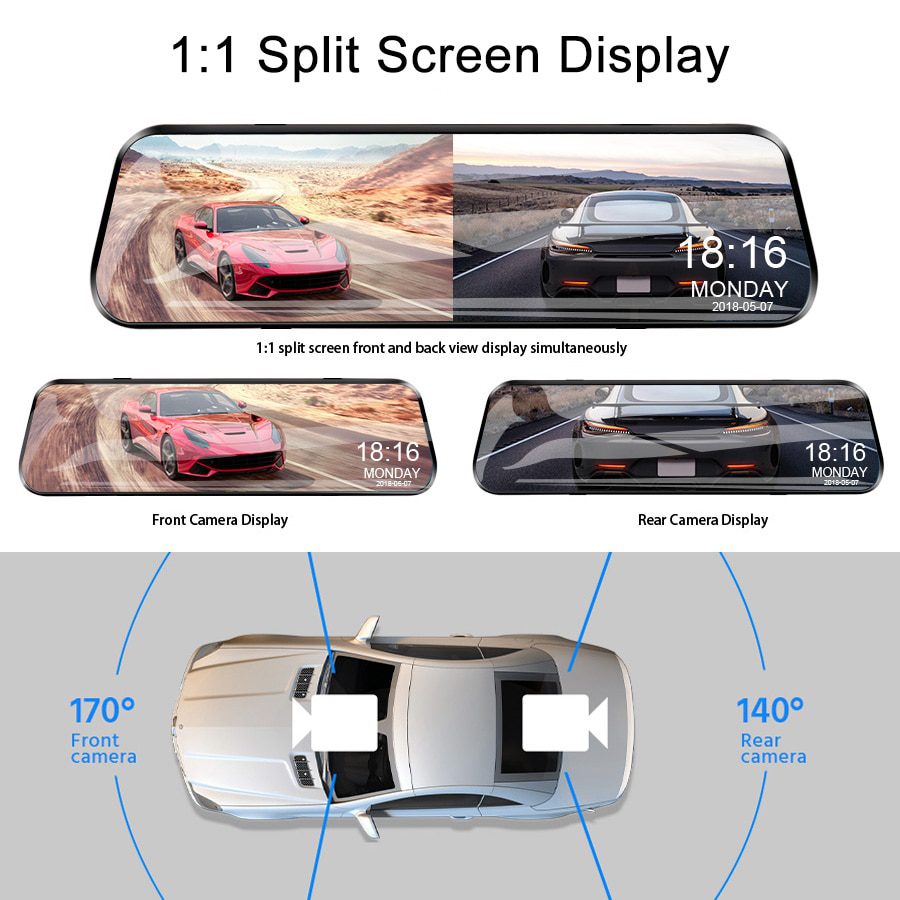

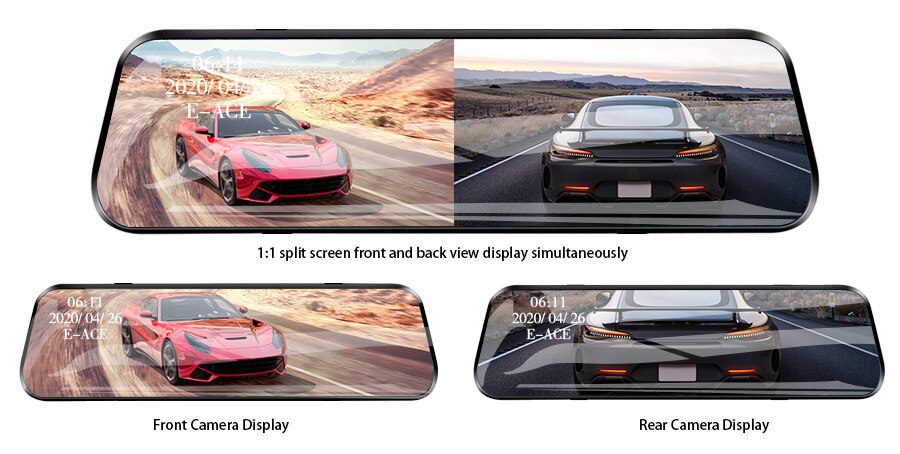

1:1 Split Screen
1:1 split screen design to switch front and rearview recording, big screen and clearly and ersily to check rear view.Touch screen to switch to front camera,back camera.

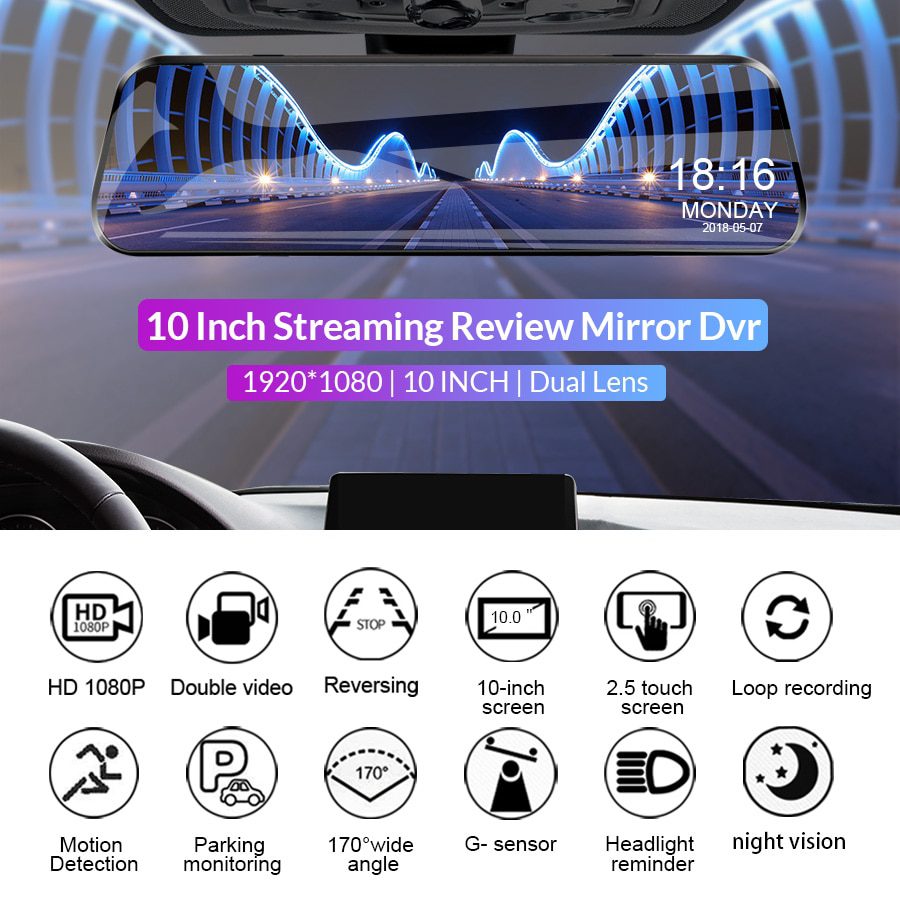

10 Inch Touch Super Screen Display
10 inch touch screen, more convenient to operate, you can very fast operation of the car camera, so that you are safer in driving.

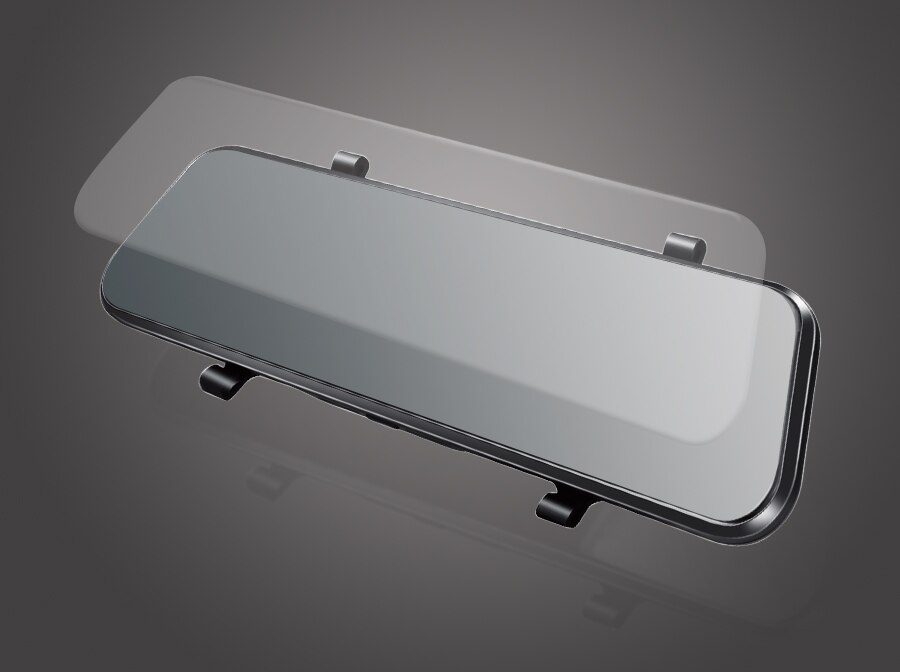

2.5D Curved Surface Screen
2.5D curved glass design,scratch-resistant ,anti-glare,anti-fingerprint.
6 Glass HD Lens

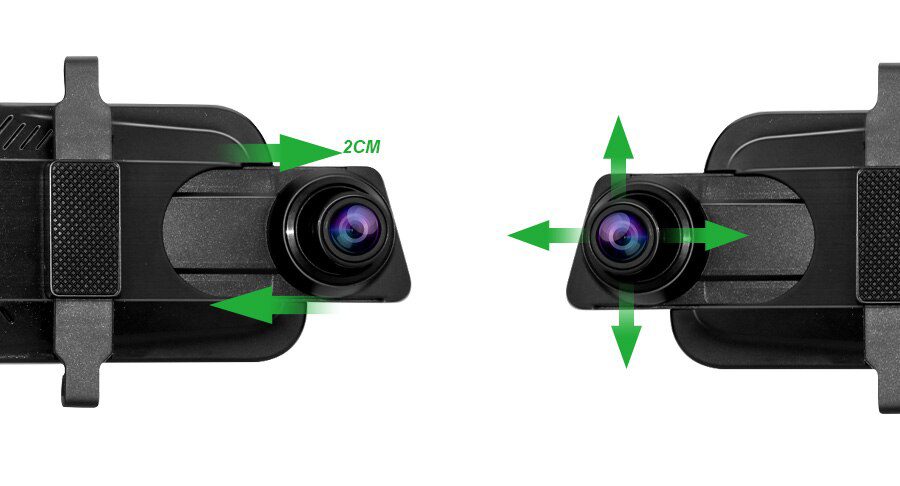

Flexible front camera, 2cm longer can be adjustable,can also adjust the lens up and down and left and right. And 6 glass HD lens , through the most, too dark, the screen of the active exposure adjustment, which is more detailed picture details, the image clearer.

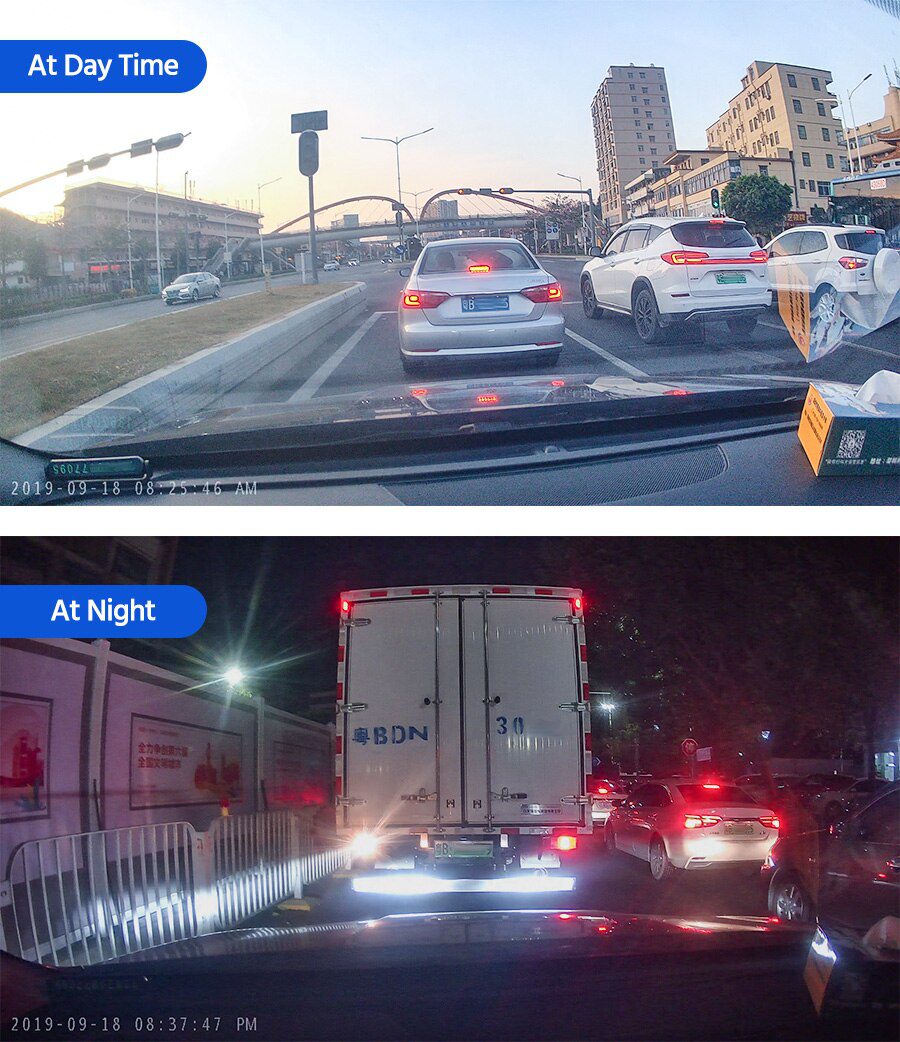

Full HD 1080P Video Quality
Higher quality images help to identify vital details such as license plates,driver actions and road features which may prove your innocence.

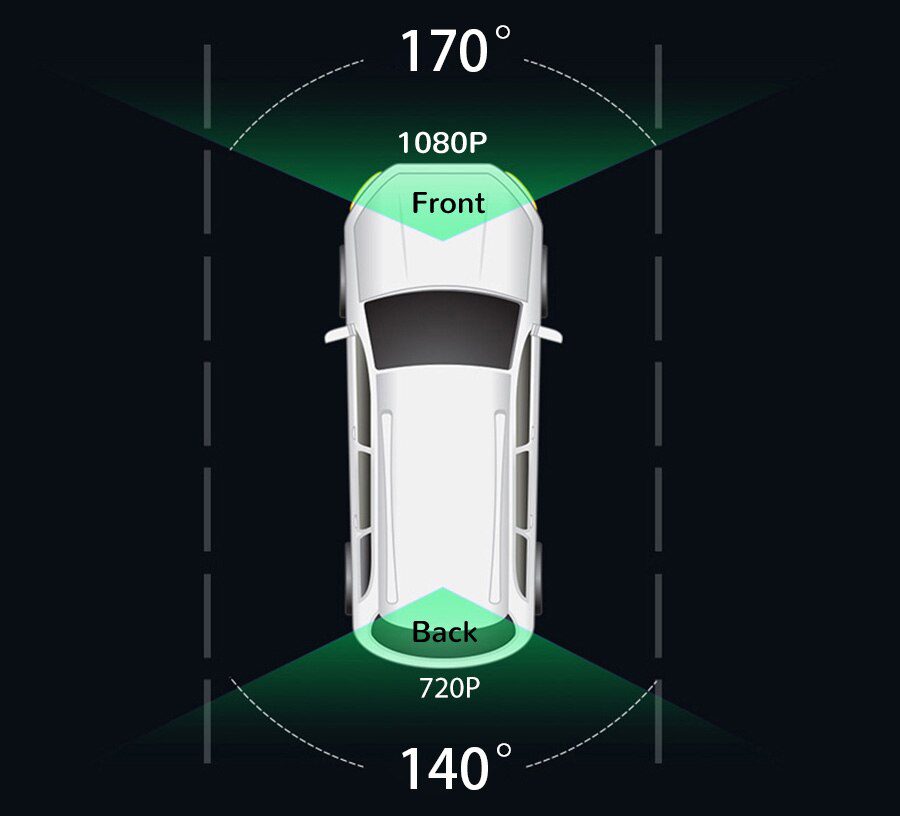

Dual Camera Simultaneously Recording
This Car DVR has cameras that allows for simultaneously recording videos from two different angles.
Real-time Display Reverse Parking view
Smart rear view angle switch between driving and parking.You could see all further vehicles and objects clearly behind. you while real-time driving and it will switch the rear view camera automatically to give a closer backup image when parking.

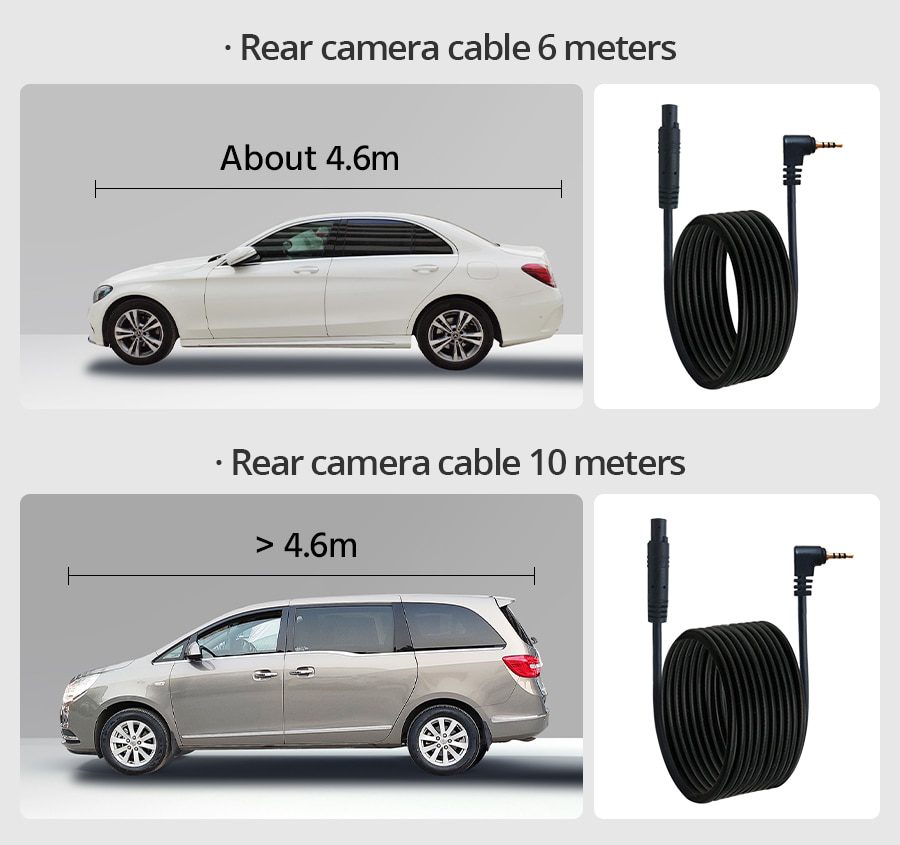

About Choosing The Length Of Rear Camera Cable
There are 2 lengths of rear camera (up to about 10 meters) can be chosen,suitable for cars of different lengths.Please choose the rear camera according to the length of your car.
Loop Recording
When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.However, videos under special conditions will not be overwritten, such as G-sensor, Parking Monitoring.
G-Sensor
When your car is subjected to an impact or other emergency, the G sensor is triggered, so that the recorder immediately records and locks the video.
Motion Detection
With the motion detection function is enabled, when the Car DVR detects a moving object, it will automatically start recording video. When there is no moving object, it will stop recording and detect the moving object again.

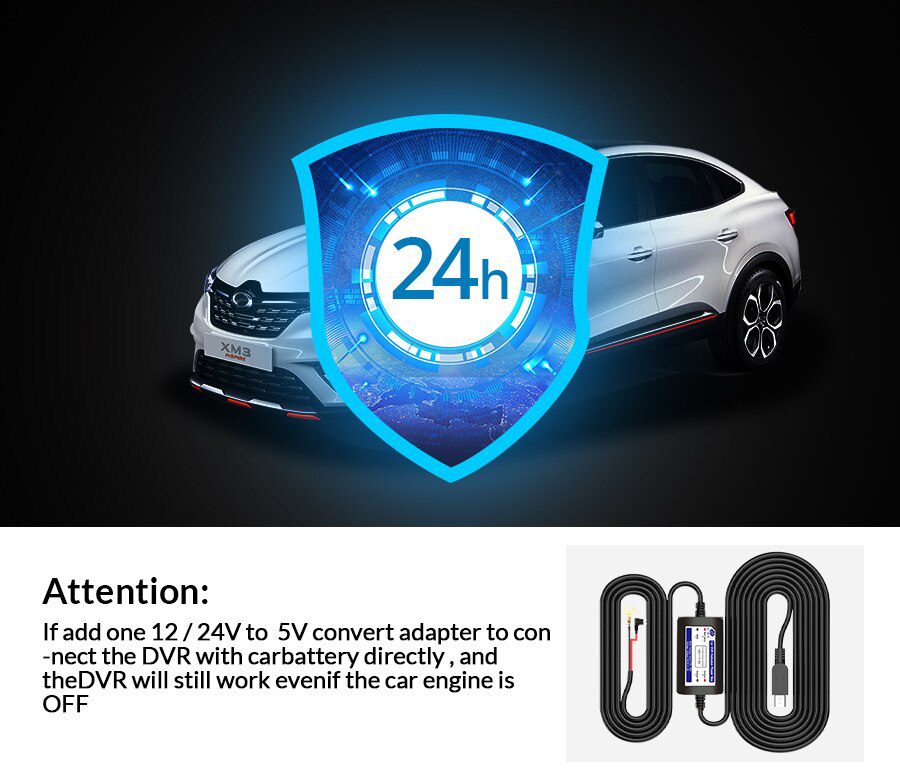

Parking Monitor
If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours.If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.

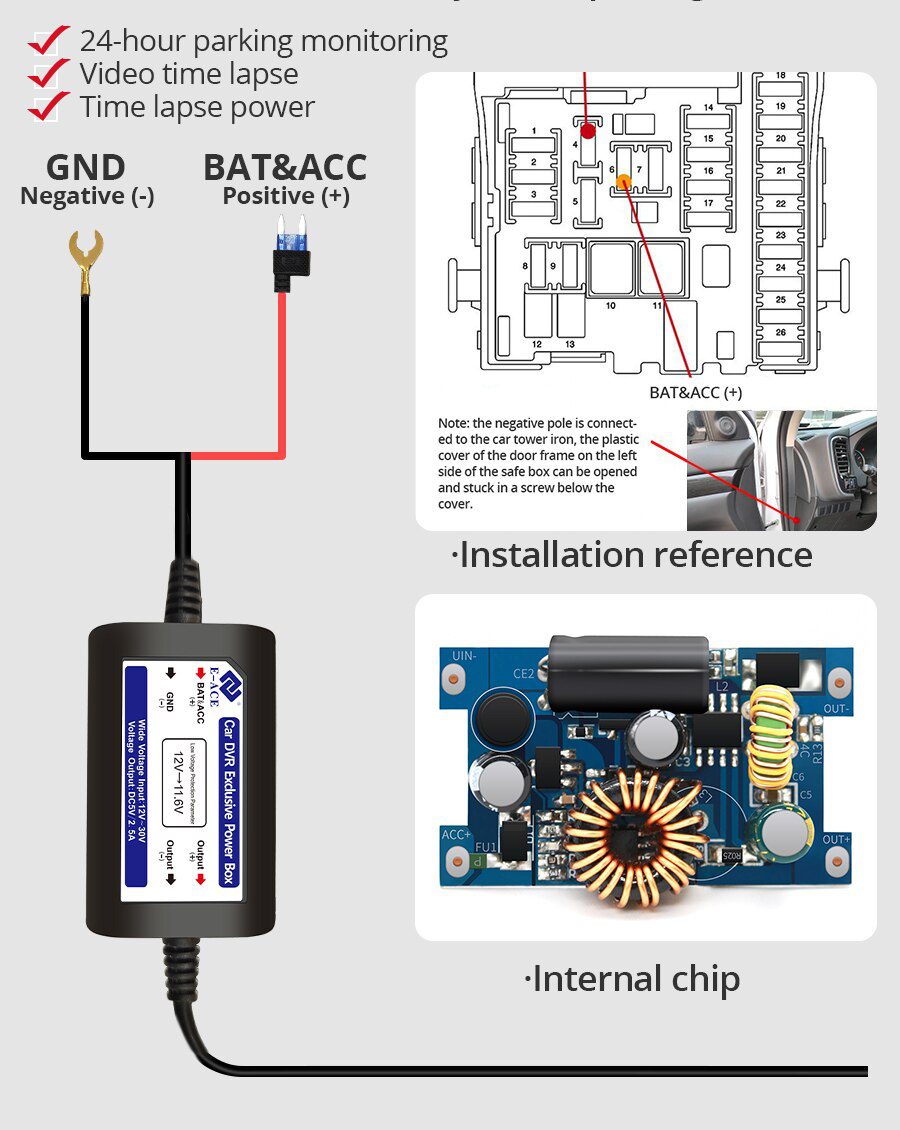

Buck Line
Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.
Wide Dynamic Range (WDR)
WDR technology can achieve very perfect video and image quality, regardless of whether the outside light is too bright or too dark.
Video Display
Product Display

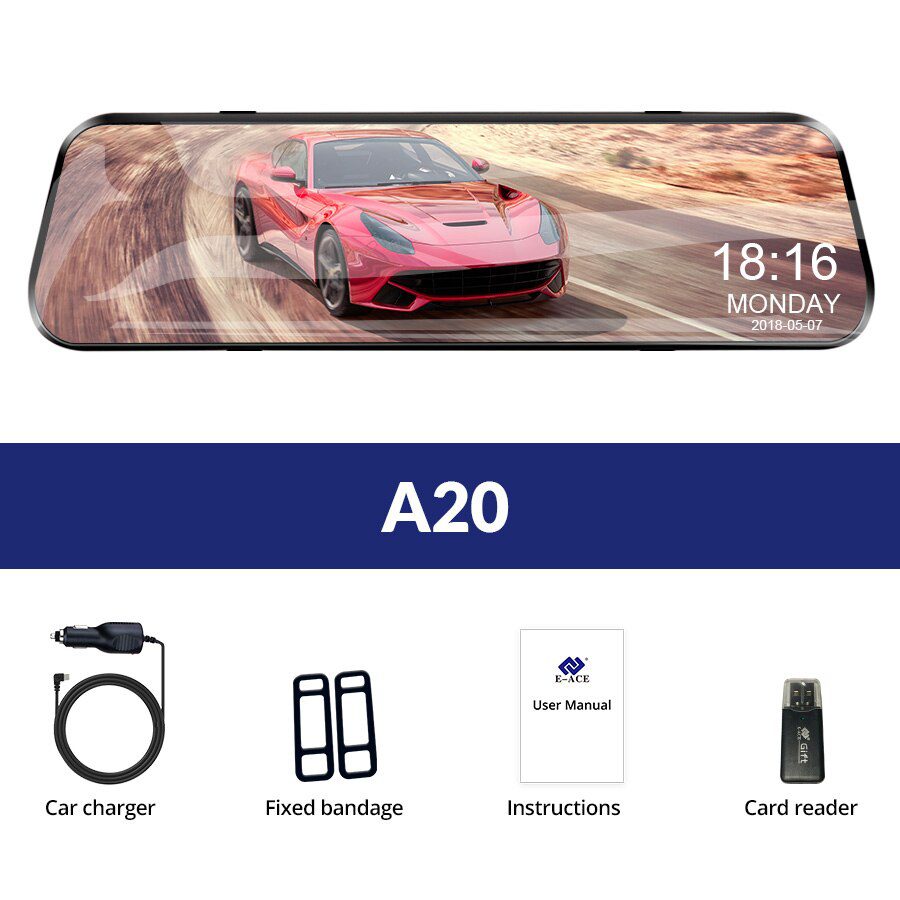

A20
-1 x DVR(Without Rearview Camera)
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader(Gift)

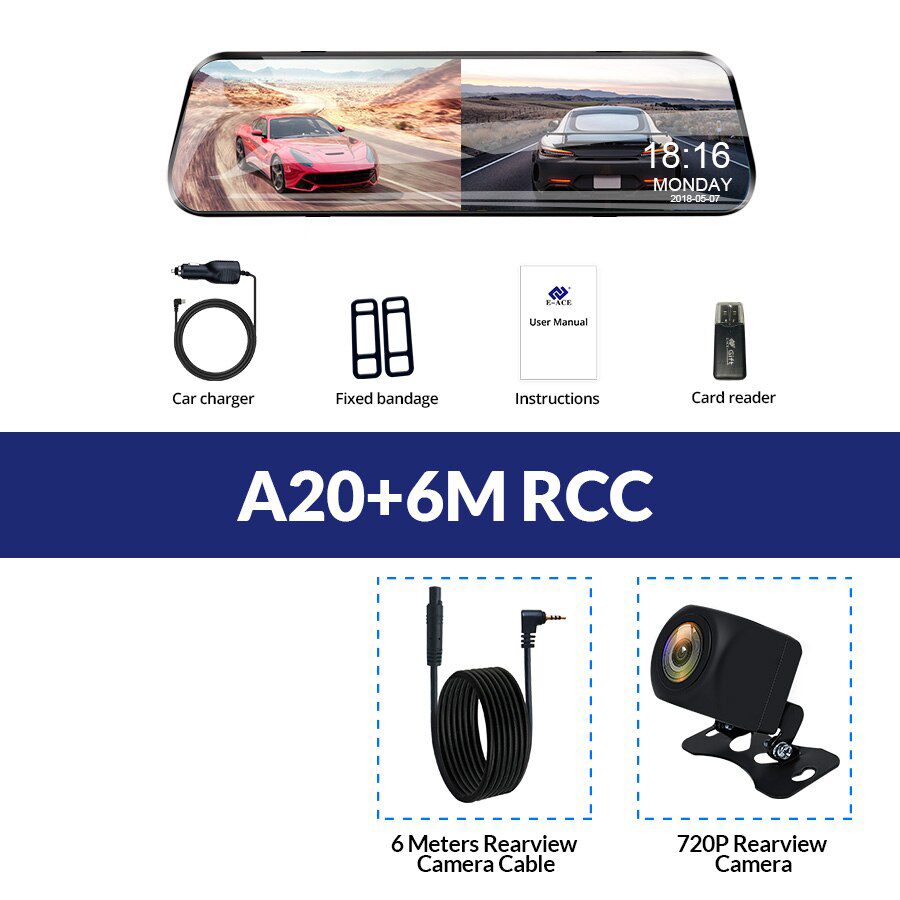

A20+6M RCC
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x 720P Rearview Camera With 6Meters Cable

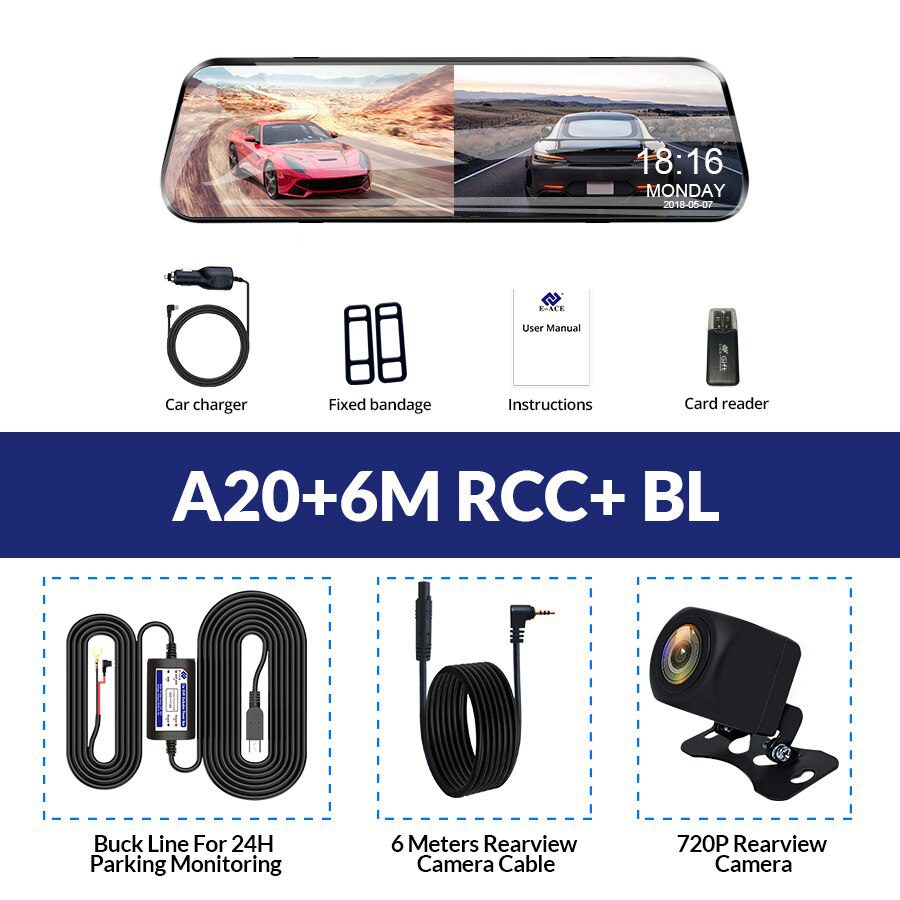

A20+6M RCC+BL
-1 x DVR
-1 x Power charge
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader(Gift)
-1 x 720P Rearview Camera With 6Meters Cable
-1 x Buck Line For 24H Parking Monitoring

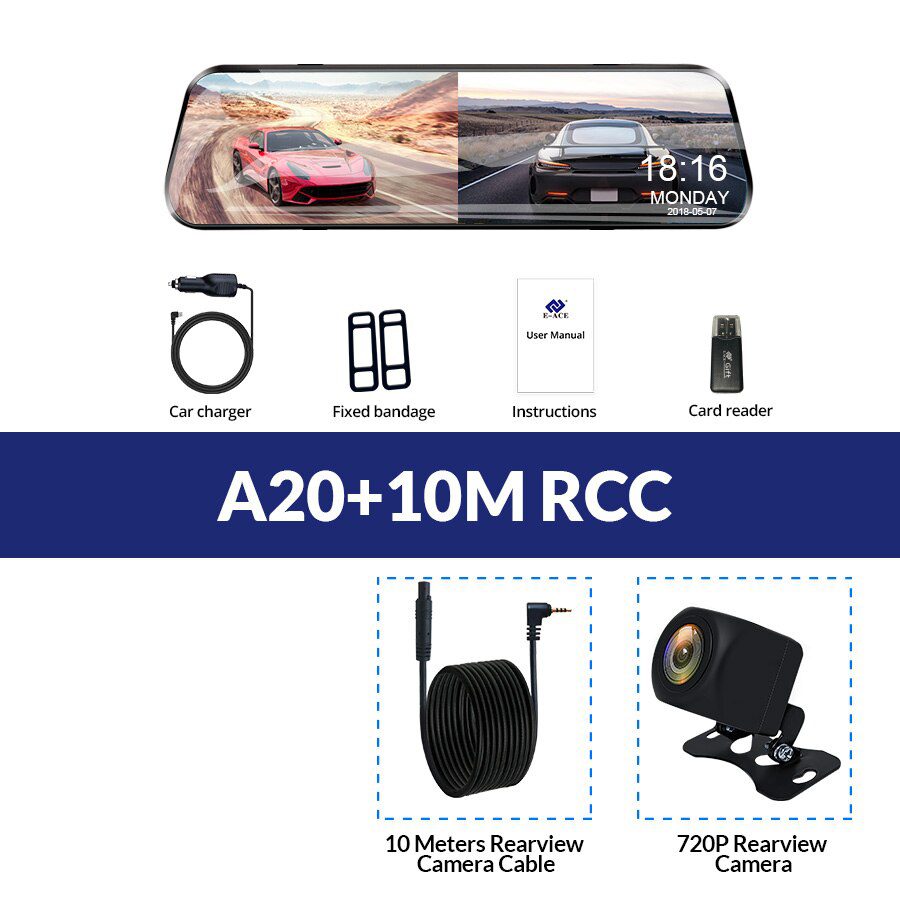

A20+10M RCC
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x 720P Rearview Camera With 10 Meters Cable

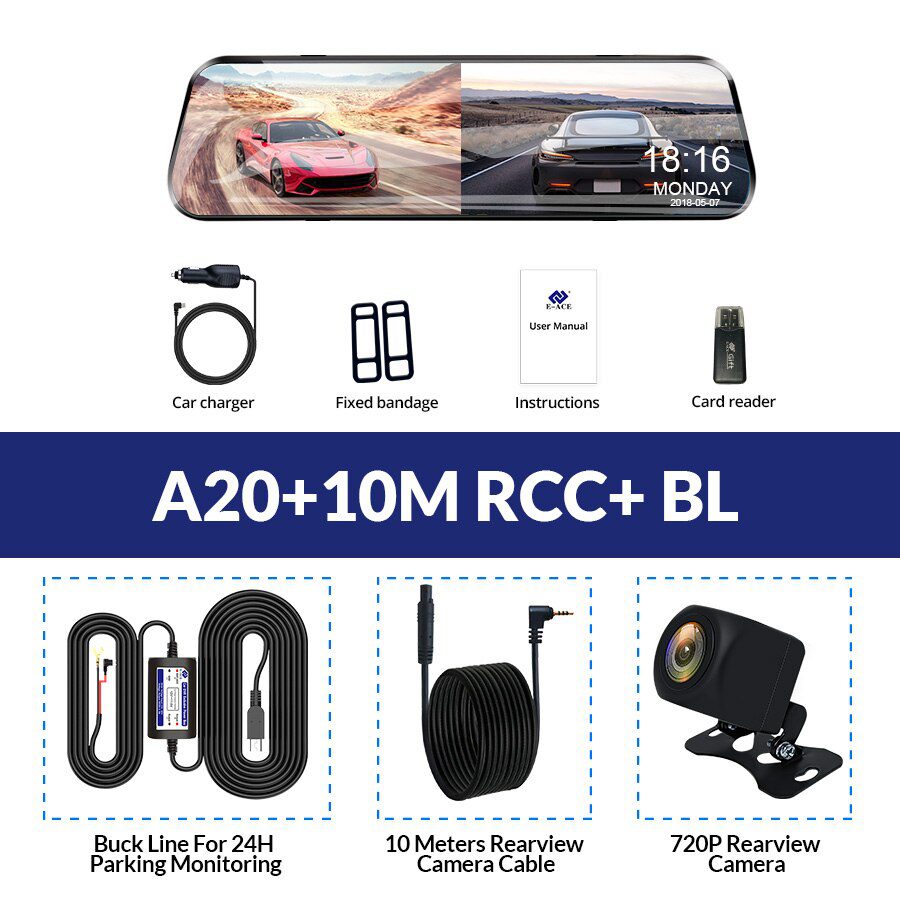

A20+10M RCC+BL
-1 x DVR
-1 x Power charge
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader(Gift)
-1 x 720P Rearview Camera With 10 Meters Cable
-1 x Buck Line For 24H Parking Monitoring
Installation Display

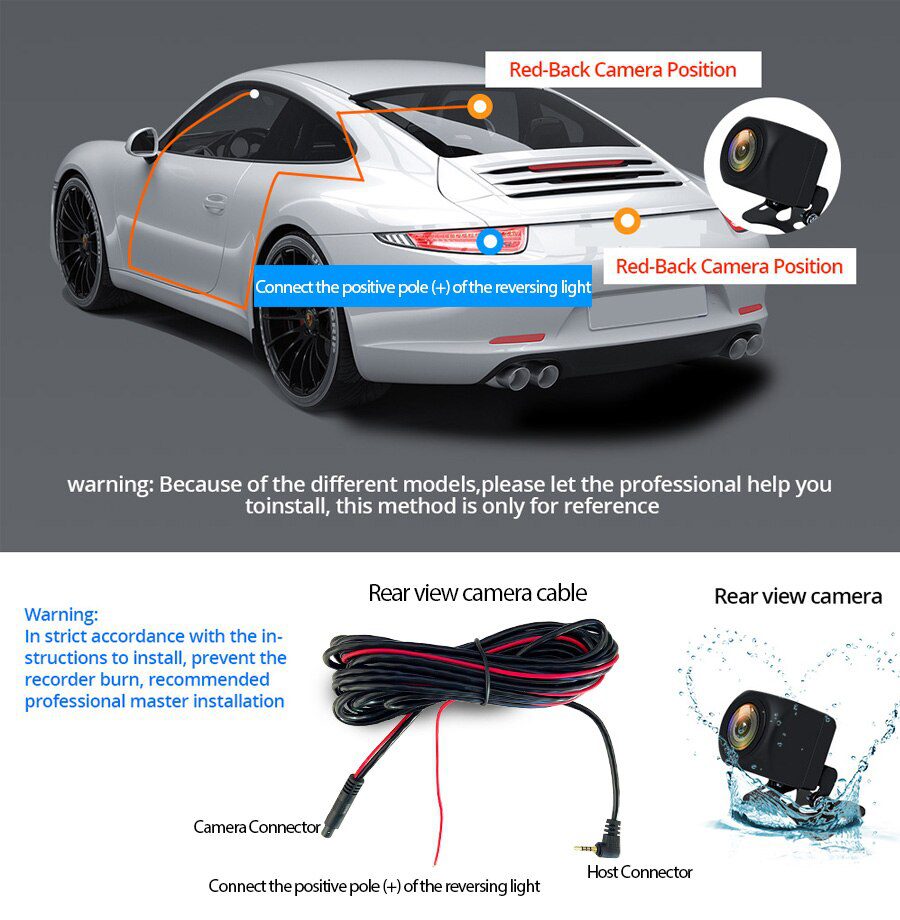

About Rear Camera Installation
Please connect the rear camera’s Red cable wire with your car reverse lamp power ‘s Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
